Containerized Solutions
2G power plants can be installed in various ways – depending on local conditions and the requirements for sound insulation. They can therefore be incorporated in existing buildings or heating systems or can be set up separately in a container or engine room. With the appropriate sound insulation package, noise emission can be as low as 35 dB (A) at a distance of 10 m.
Compact Container
Sizes Available
19.7 ft x 8 ft x 9.2 ft
Acoustic Emissions
Standard: 65 dB (A)
Super silent: up to 55 dB (A)
Standard Container
Sizes Available
21.3 ft x 9.8 ft x 9.8 ft
29.5 ft x 9.8 ft x 9.8 ft
34.4 ft x 9.8 ft x 9.8 ft
39.4 ft x 9.8 ft x 9.8 ft
Standard: 65 dB (A)
Super silent: up to 52 dB (A)
High Line Container
Sizes Available
29.5 ft x 9.8 ft x 12.1 ft
34.4 ft x 9.8 ft x 12.1 ft
39.4 ft x 9.8 ft x 12.1 ft
39.4 ft x 14.1 ft x 17.5 ft
Standard: 65 dB (A)
Super silent: up to 45 dB (A)
Container Twin Pack
Sizes Available
42.7 ft x 9.8 ft x 9.8 ft
49.2 ft x 9.8 ft x 9.8 ft
Standard: 65 dB (A)
Super silent: up to 52 dB (A)
Outdoor Sound Capsule
Sizes Available
Depending on product
Acoustic Emissions
Standard: 65 dB (A)

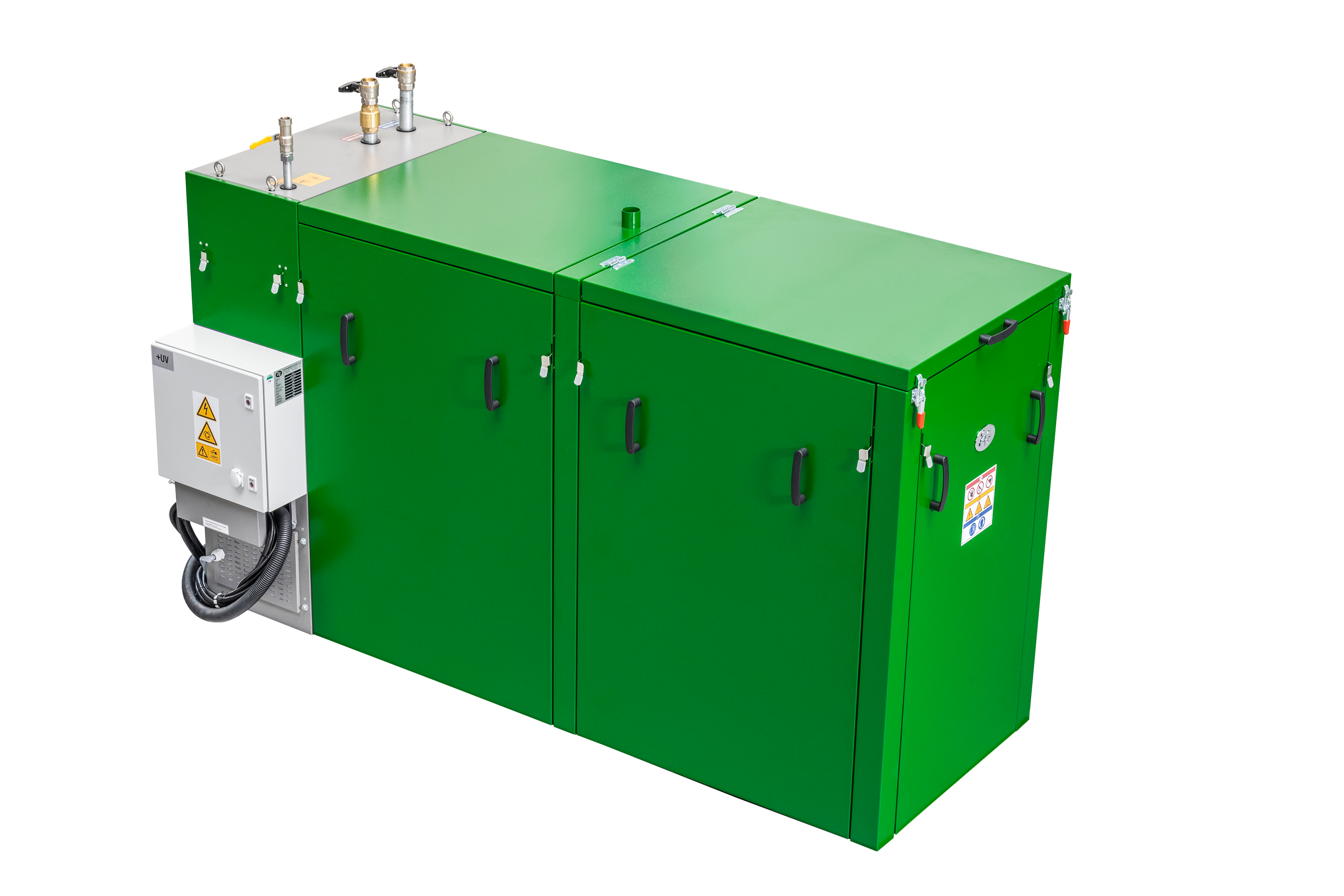

Sound Capsule
Sizes Available
Depending on product
Acoustic Emissions
Standard: 65 dB (A)
Natural Gas Case Studies
New Haven Non-Profit Assisted Living Facility - New Haven, CT

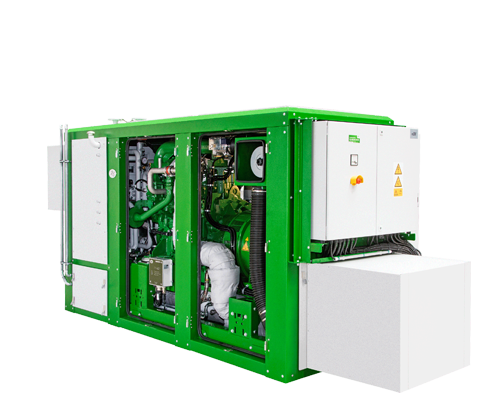

The Towers at Tower Lane, residing in New Haven, Connecticut, utilizes (1) aura 404 with an output of 100kW. This facility is a distinctive non-profit apartment and assisted living retirement community in the heart of one of New England's most historic and vital cities. This unit will produce 40% of this facility's energy through cogeneration with hot water recovery, allowing the facility to utilize the savings to feed those elderly residents who live on a fixed income through a food sustainability program. The project makes meals more accessible and affordable, improving nutrition for those in need for the next 25 years.
Texas Wesleyan University - Fort Worth, TX
Texas Wesleyan University launched a $6.2 Million energy-saving project in 2015. The centerpiece of this project is 2G Energy's avus 800, a CHP that provides power to much of the campus spanning 83 acres. The natural gas-powered CHP plant supplies 80% of the power to 80% of the campus while reducing the university's dependency on the public power grid. The new power plant includes a 250-ton absorption chiller, a new cooling tower, new heating boilers, pumping systems, and central plant optimization controls. The self-funded project will pay for itself in cost savings quickly. The power system is expected to save $377,000 and 5.9 million kilowatt-hours per year.
Eden Resort - Lancaster, PA
2G Energy Inc. received the order to manufacture and supply a 2G patruus rated 400 ekW/h with a yearly capacity of 3,320 MWh electrical output and 15,756 mmBTU thermal energy generation. This fully-containerized CHP system was supplied in High-Line Configuration for more pleasing optics and with a reduced noise level of <50 dB(A) @ 30' to ensure a very quiet ambiance around the hotel. The High-Line CHP Module was delivered in the hotel's color and skillfully integrated into the existing resort infrastructure, considering hotel guest experience and limitations on space. The hotel is now enjoying significant cost savings, and this project demonstrates how easy it is for hotel owners to reduce their energy expenses.
